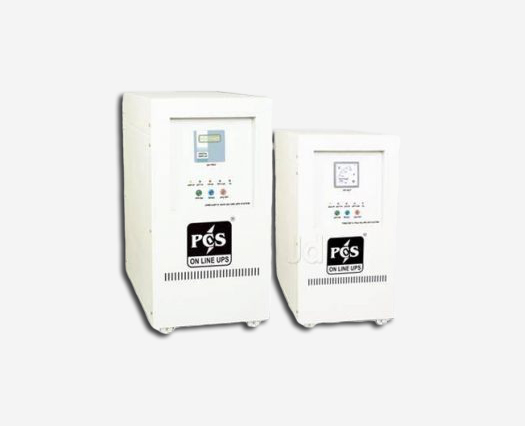

The all new PCS ONLINE UPS System is a result of latest manufacturing technique using high Frequency PWM technique in its inverter section and the auto trickle monitoring technique in its float cum boost charger section. It employs the double conversion technique which ensures no spike or surge in the output. The use of latest generation state of the art I”M (Intelligent Power Module) IGBT & MOSFET in its power circuits & Microcontroller in its control circuits ensure the UPS systems with inbuilt reliability for long MTBF.
Call Us +91-9810062445| INPUT MODE: | |
|---|---|
| AC INPUT VOLTAGE | 170V to 270V or 300V to 470V |
| INPUT FREQUENCY RANGE | 50Hz ± 5% |
| PHASE | SINGLE / THREE PHASE |
| OUTPUT MODE:: | |
|---|---|
| A.C. OUTPUT VOLT | 220/230V (other voltage available on request) |
| OUTPUT VOLTAGE STABILTY | ±1% |
| FREQUENCY | 50 Hz ± 0.5% |
| OUTPUT WAVEFORM | Sinewave |
| TOTAL HARMONIC DISTORTION | <3% |
| TRANSFER TIME | Zero |
| OVERLOAD CAPACITY | 110% for 15 masec |
| LOAD POWER FACTOR | 0.8 lag to unity |
| INVERTER EFFICIENCY | >80% |
| PROTECTION
a) INVERTER b) BATTERY Short Circuit c) BATTERY CHARGER |
Overload, Short Circuit Overcharge, Overdischarge Overload, short circuit |
| INDICATIONS | Load on mains. load on battery |
| METERING | AC Current, AC Volt OPTIONAL Battery Voltage Battery current frequency meter |
| BATTERY CHARGING
on battery rating and depth of discharge. |
8 to 10 Hrs. depending |
| BACK-UP TIME
Back-up time limited by Battery capacity |
System rated for continous duty |
| AMBIENT CONDITIONS
a) OPERATING b) STORAGE c) RELATIVE HUMIDITY |
0°C – 45°C 0°C – 60°C 95% max |
| COOLING | Inbuilt instrument fan |
| HOUSING | Self supporting trolley type cubicle for rating up to 100 KVA |
PCS Sleek stand by UPS System is manufactured with latest Power Conversion technology and the filtering devices.

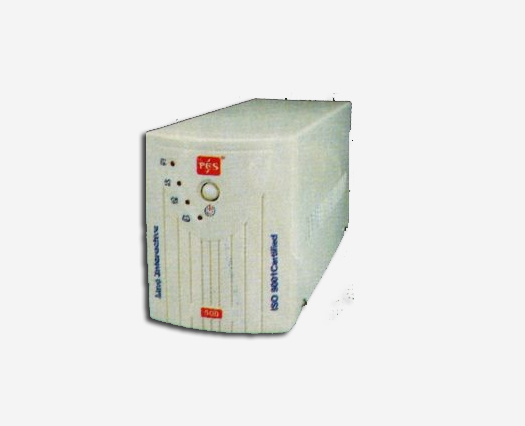

The all new PCS Line Interactive UPS combines the high efficiancy of a PWM Systems. The high switching capability combined with low heat, low loss design of MOSFET. Contribute to the high performance output indigeously designed and developed circuit. The all new PCS Line Interactive understands and copes with vagaries of Indian Power Conditions more completely than its other counterparts.
| INPUT MODE: | |
|---|---|
| VOLTAGE RANGE | 150V – 280V Single Phase |
| FREQUENCY | 50Hz ± 5% |
| OUTPUT MODE:: | |
|---|---|
| MAINS MODE VOLTAGE | 220V ± 6% |
| FREQUENCY | 50Hz ± 5% |
| INVERTER MODE: | |
| VOLTAGE RANGE | 220V ± 6% |
| FREQUENCY | 50Hz ± 5°/0 |
| WAVEFORM | Quasi Sinusoida: Wave |
| LOAD POWER FACTOR | 0.8 Lagging to unity |
| TRANSFER TIME | Less thatn 6 milli sec. |
| OUTPUT PROTECTIONS | AC Side Fusa/DC Side Fuse |
| LINE NOISE ATTENTUATION | 40 – 80 db |
| CLAMPING LAVEL | 400 V |
| INDICATIONS | Mains Ori, Battery On, Battery LOW, Over’ |
